M8 Female Field-Wireable Connector 4 Pin Straight IP67

Name: M8 Female FieldWireable Connector 4 Pin Straight IP67
Brand: KRONZ
Price: 1 USD

Quality M8 Female Field-Wireable Connector 4 Pin Straight IP67 for sale

Model Number : H0804FV-0

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Brand Name : KRONZ

Certification : CE

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Product Name : M8 Male Connector

Type : Field-wireable Assembly Connectors

Material : Brass,gold-plated

IP rate : IP67

Contact Resistance : ≤ 5mΩ

Ambient Temperature : -25~+85℃

Connection Method : Screw Connection

Pin : 4

Contact Now

M8 Metal Connector Female Field-wireable Assembly Straight 4 Pin Connectors

This Field Wireable M8 Female Connector features a 4-pin A-coded design with a straight orientation, ideal for on-site wiring in space-constrained industrial environments. Engineered for flexibility and ease of assembly, it provides secure and stable connections for sensors, actuators, and control devices.

Features:

Connector Type: M8 Female, 4-Pin, A-Coded
Orientation: Straight
Termination: Field wireable for easy on-site installation
Housing: Compact and durable design suitable for industrial use
Applications: Sensors, actuators, I/O modules, and automation systems
Standard: IEC 61076-2-104 compliant

Technical Parameters

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	Brass, nickle-plated
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
	Screw connection	A	3A	60V	Straight	3.5-5mm	H0804FV-0

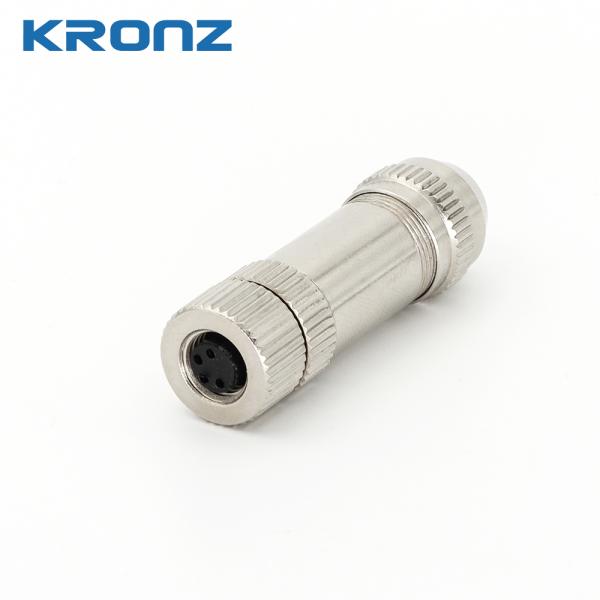

Product Images

M8 Female Field-Wireable Connector 4 Pin Straight IP67

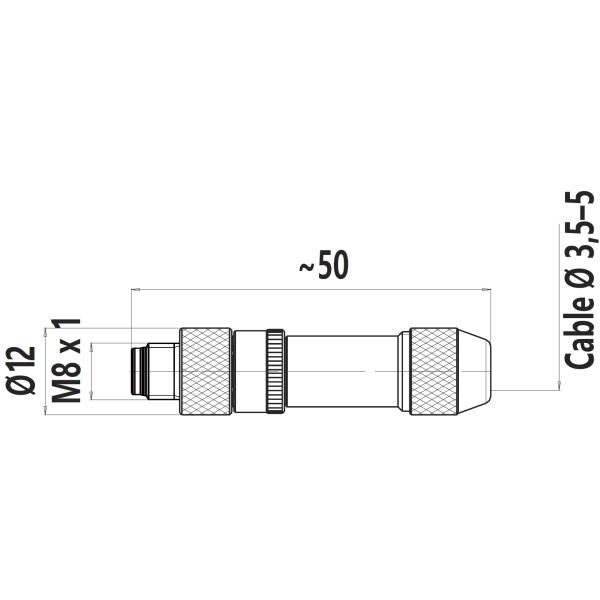

Product Dimension Drawing

M8 Female Field-Wireable Connector 4 Pin Straight IP67
